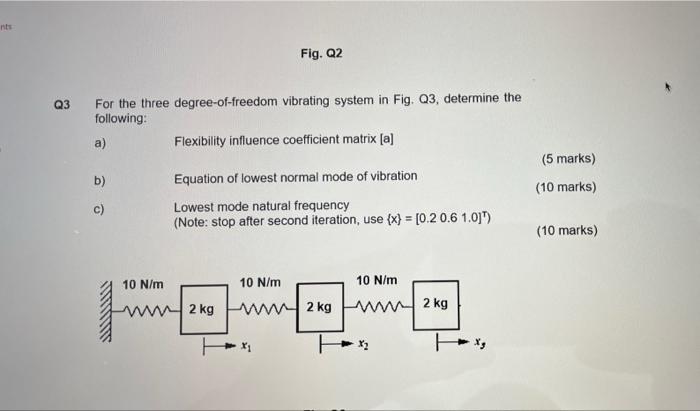

nit Fig. Q2 Q3 For the three degree-of-freedom vibrating system in Fig. 23, determine the following: a) Flexibility influence coefficient matrix [a] (5 marks) b) (10 marks) Equation of lowest normal mode of vibration Lowest mode natural frequency (Note: stop after second iteration, use {x} = [0.2 0.6 1.0)") c) (10 marks) 10 N/m 10 N/m 10 N/m m2 kg fun 2 kg 2 kg Xy
