You are automation engineers for a production system, which controls the movement of parts along a conveyor system. You

[answerhappygod]

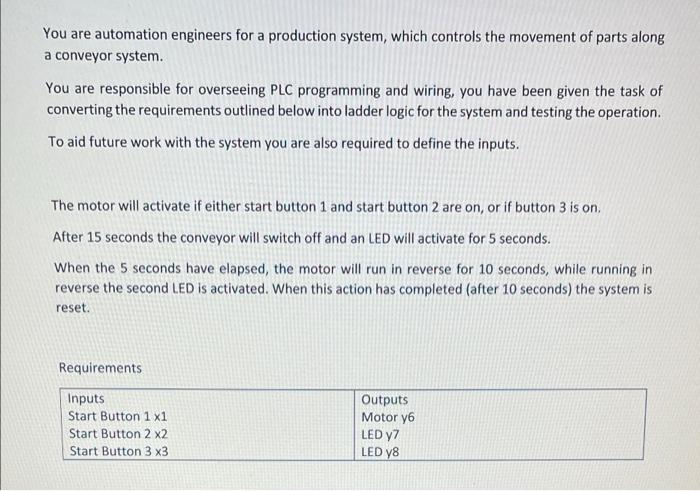

You Are Automation Engineers For A Production System Which Controls The Movement Of Parts Along A Conveyor System You 1 (61.15 KiB) Viewed 18 times

You are automation engineers for a production system, which controls the movement of parts along a conveyor system. You are responsible for overseeing PLC programming and wiring, you have been given the task of converting the requirements outlined below into ladder logic for the system and testing the operation. To aid future work with the system you are also required to define the inputs. The motor will activate if either start button 1 and start button 2 are on, or if button 3 is on. After 15 seconds the conveyor will switch off and an LED will activate for 5 seconds. When the 5 seconds have elapsed, the motor will run in reverse for 10 seconds, while running in reverse the second LED is activated. When this action has completed (after 10 seconds) the system is reset. Requirements Inputs Start Button 1 x1 Start Button 2 X2 Start Button 3x3 Outputs Motor y6 LED y7 LED 48
