1. For the circuit below (50 points) (a) find the mathematical expressions for the transient behavior of the voluge ve.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. For the circuit below (50 points) (a) find the mathematical expressions for the transient behavior of the voluge ve.

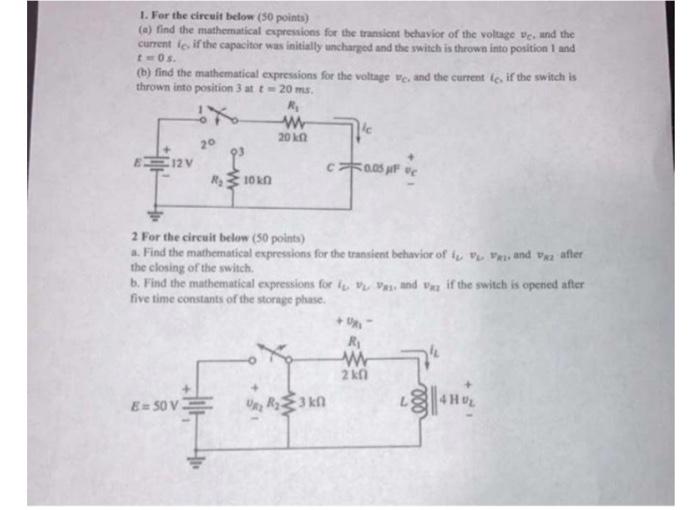

1. For the circuit below (50 points) (a) find the mathematical expressions for the transient behavior of the voluge ve. and the current ſo if the capacitor was initially uncharged and the switch is thrown into position 1 and tos (b) find the mathematical expressions for the voltage wc, and the current lo, if the switch is thrown into position 3 at t=20 ms. R w 2010 20 12V C500 19 100 2 For the circuit below (50 points) Find the mathematical expressions for the transient behavior of land ka after the closing of the switch b. Find the mathematical expressions for land Vw if the switch is opened after five time constants of the storage phase. R w 20 ESOV Holk Up R33 kn 4 HU
