For the following control System: Conduct test (without the controller) using open loop configuration or close loop conf

[answerhappygod]

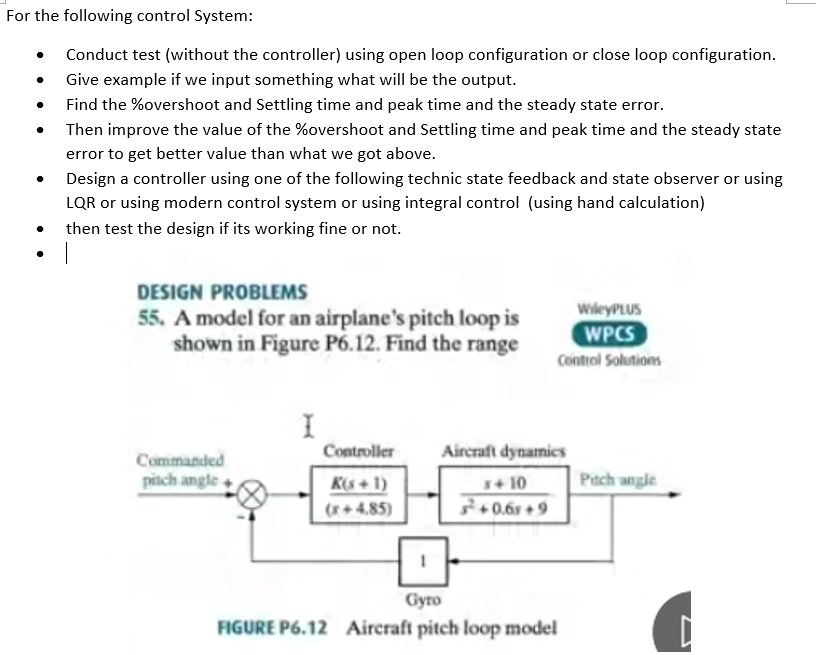

For The Following Control System Conduct Test Without The Controller Using Open Loop Configuration Or Close Loop Conf 1 (193.74 KiB) Viewed 19 times

For the following control System: Conduct test (without the controller) using open loop configuration or close loop configuration. Give example if we input something what will be the output. Find the %overshoot and Settling time and peak time and the steady state error. Then improve the value of the %overshoot and Settling time and peak time and the steady state error to get better value than what we got above. Design a controller using one of the following technic state feedback and state observer or using LQR or using modern control system or using integral control (using hand calculation) then test the design if its working fine or not. DESIGN PROBLEMS 55. A model for an airplane's pitch loop is shown in Figure P6.12. Find the range Wiley PLUS WPCS Control Solutions 1 Commanded pitch angle Controller Ks. 1) (s 4.85) Aircraft dynamics +10 3.0.659 Pitch angle Gyro FIGURE P6.12 Aircraft pitch loop model D
