As seen on the side, an inductor is obtained by using 2 EE42 cores. Let's assume that there is an air gap in the middle

[answerhappygod]

As Seen On The Side An Inductor Is Obtained By Using 2 Ee42 Cores Let S Assume That There Is An Air Gap In The Middle 1 (59.65 KiB) Viewed 15 times

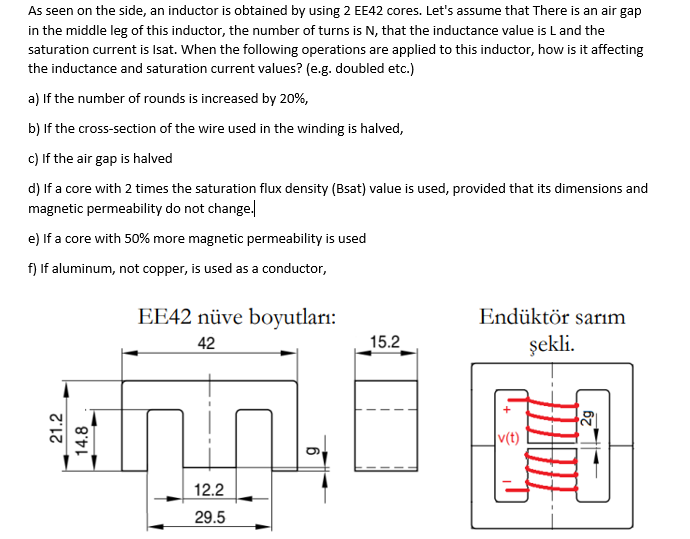

As seen on the side, an inductor is obtained by using 2 EE42 cores. Let's assume that there is an air gap in the middle leg of this inductor, the number of turns is N, that the inductance value is Land the saturation current is Isat. When the following operations are applied to this inductor, how is it affecting the inductance and saturation current values? (e.g.doubled etc.) a) If the number of rounds is increased by 20%, b) If the cross-section of the wire used in the winding is halved, c) If the air gap is halved d) If a core with 2 times the saturation flux density (Bsat) value is used, provided that its dimensions and magnetic permeability do not change. e) If a core with 50% more magnetic permeability is used f) If aluminum, not copper, is used as a conductor, EE42 nüve boyutları: 42 Endüktör sarım şekli. 15.2 2g 21.2 14.8 v(t) 画 6 12.2 29.5
