For the following program, when you put the program in run mode, and turn on the "Input" toggle switch, what will happen

[answerhappygod]

For The Following Program When You Put The Program In Run Mode And Turn On The Input Toggle Switch What Will Happen 1 (27.46 KiB) Viewed 23 times

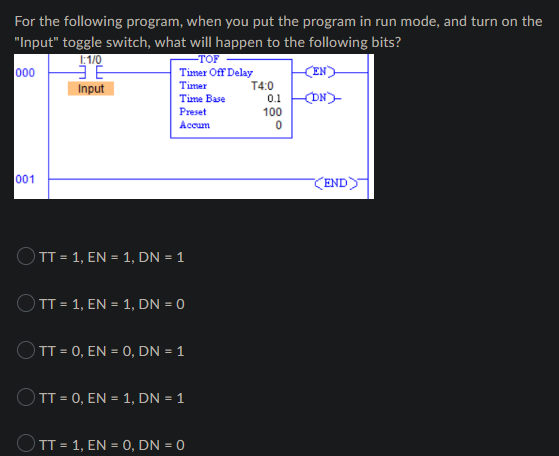

For the following program, when you put the program in run mode, and turn on the "Input" toggle switch, what will happen to the following bits? 1:110 -TOF 000 E Timer Off Delay Input Timer T4:0 Time Base 0.1 CDN 100 Accum 0 Preset 001 END OTT = 1, EN = 1, DN = 1 OTT = 1, EN = 1, DN = 0 OTT = 0, EN = 0, DN = 1 OTT = 0, EN = 1, DN = 1 OTT = 1, EN = 0, DN = 0
