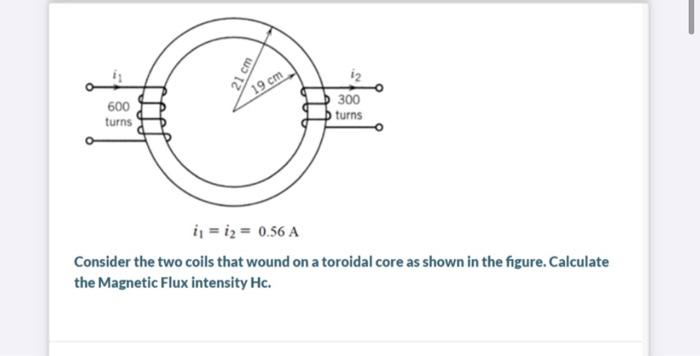

21 cm 19 cm i2 300 turns 600 turns SIIT i1 = 12 = 0.56 A Consider the two coils that wound on a toroidal core as shown in the figure. Calculate the Magnetic Flux intensity Hc.

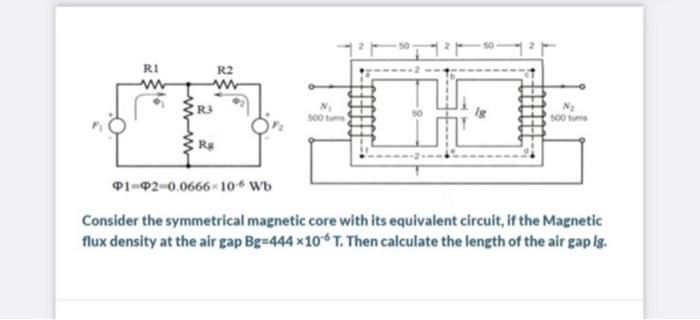

R2 RI w R3 N 500 SOO Rs P1-02 0.0666 10. Wb Consider the symmetrical magnetic core with its equivalent circuit, if the Magnetic flux density at the air gap Bg=444 10%T. Then calculate the length of the air gaplg.
