14. If you route the data lines in the same direction as the clock line in a shift register you are likely to: (a) all a

[answerhappygod]

14 If You Route The Data Lines In The Same Direction As The Clock Line In A Shift Register You Are Likely To A All A 1 (100.76 KiB) Viewed 19 times

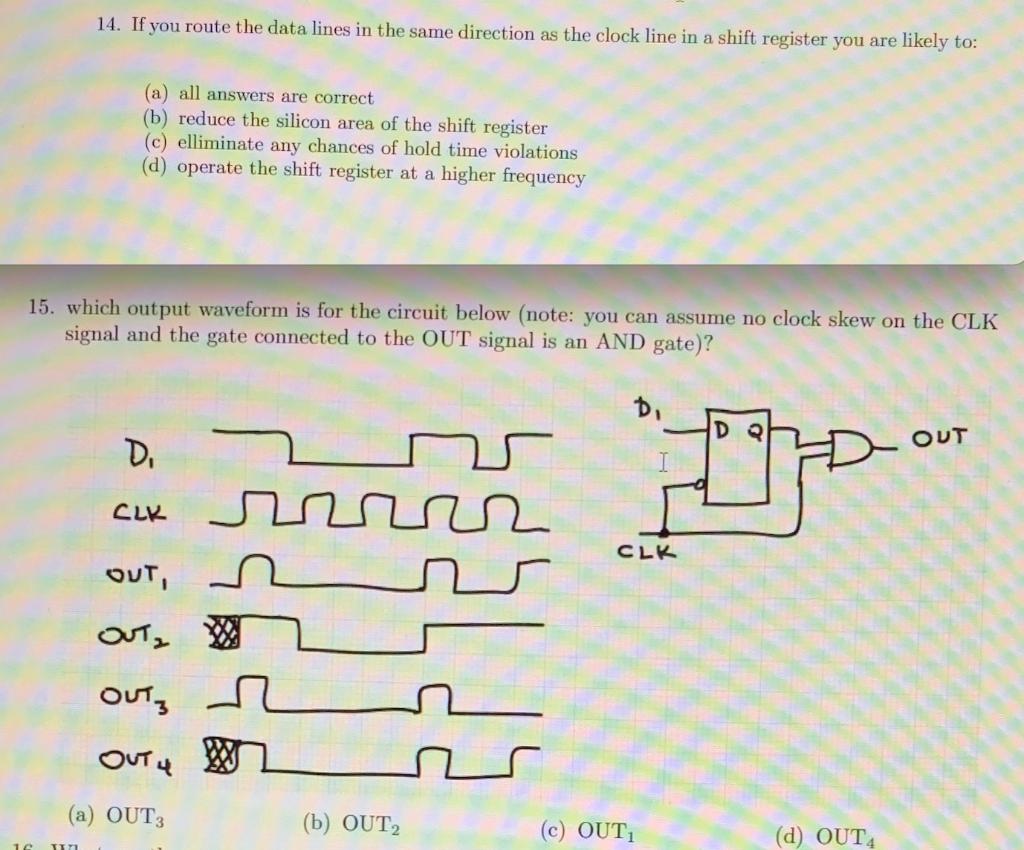

14. If you route the data lines in the same direction as the clock line in a shift register you are likely to: (a) all answers are correct (b) reduce the silicon area of the shift register (c) elliminate any chances of hold time violations (d) operate the shift register at a higher frequency 15. which output waveform is for the circuit below (note: you can assume no clock skew on the CLK signal and the gate connected to the OUT signal is an AND gate)? D. 2 OUT CLK CLK OUT, OUT, OUT3 S OUTU (a) OUT (b) OUT, (C) OUT (d) OUT 10 ITU
