40. For the following timing circuit with TSETUP = 30ps, THOLD = -20ps and TCHQV = 20ps. If both combinational blocks ha

[answerhappygod]

40 For The Following Timing Circuit With Tsetup 30ps Thold 20ps And Tchqv 20ps If Both Combinational Blocks Ha 1 (121.2 KiB) Viewed 18 times

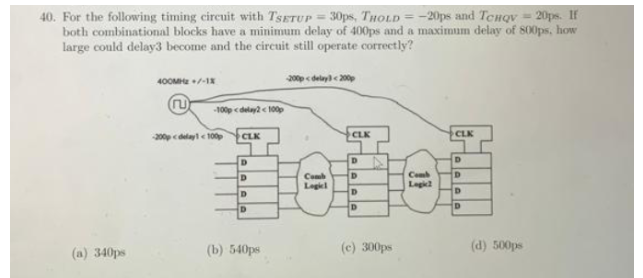

40. For the following timing circuit with TSETUP = 30ps, THOLD = -20ps and TCHQV = 20ps. If both combinational blocks have a minimum delay of 400ps and a maximum delay of 800ps, how large could delay3 become and the circuit still operate correctly? 400MHE-1 2009 der <200 -1000 2100 20 cel<1009 CLK CLK CLK D D D D D D Com Lagi Com Lake D D D D D D (a) 340ps (b) 540ps (e) 300ps (d) 500ps
