19. which output waveform is for the circuit below (note: you can assume no clock skew on the CLK signal and the gate co
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
19. which output waveform is for the circuit below (note: you can assume no clock skew on the CLK signal and the gate co

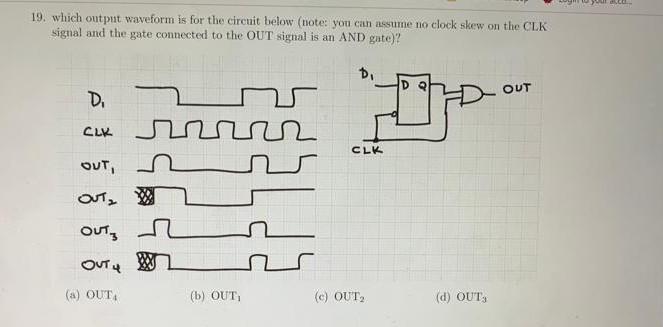

19. which output waveform is for the circuit below (note: you can assume no clock skew on the CLK signal and the gate connected to the OUT signal is an AND gate)? Di OUT D. CLK பபபப CLK OUT, a OUT, OUTz n OUT 4 (a) OUT (b) OUT) (c) OUT (d) OUT,
