Question 1 Derive The Transfer Function For The Network In Figure 1 Below Using Matlab Octave Plot G S Versus Freq 1 (123.09 KiB) Viewed 19 times
NB: PLEASE USE OCTAVE, plot |G(s)| versus frequency in
Hertz, on a semilog scale.

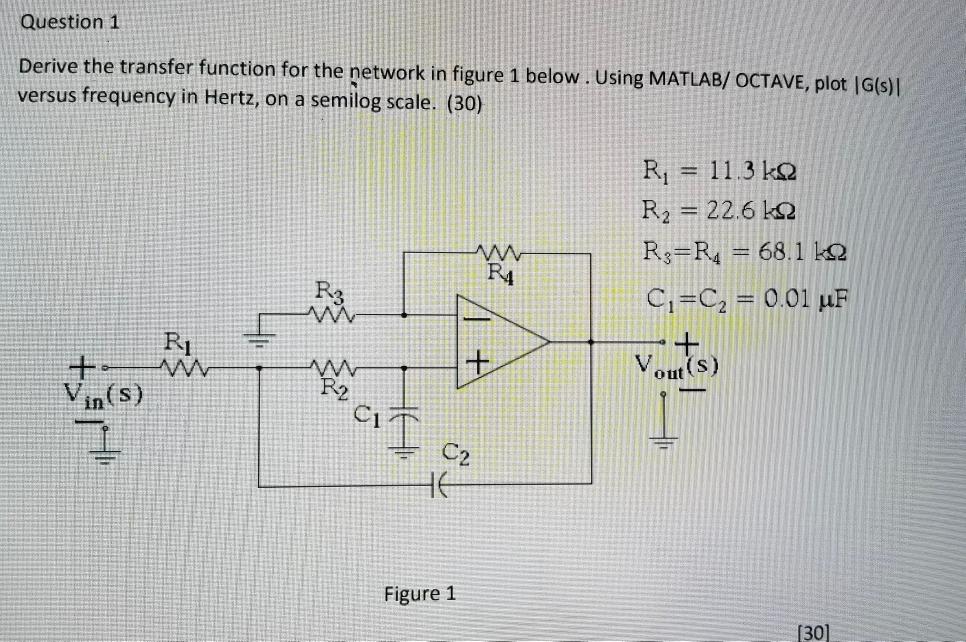

Question 1 Derive the transfer function for the network in figure 1 below. Using MATLAB/ OCTAVE, plot |G(s)! versus frequency in Hertz, on a semilog scale. (30) R, = 11.3 k22 R2 = 22.6 k 2 R3=R4 = 68.1 kg C1=C2 = 0.01 uF WW = R4 w RI M + Vout(s) M + Vin(s) 1 HA C2 HE Figure 1 [30]
