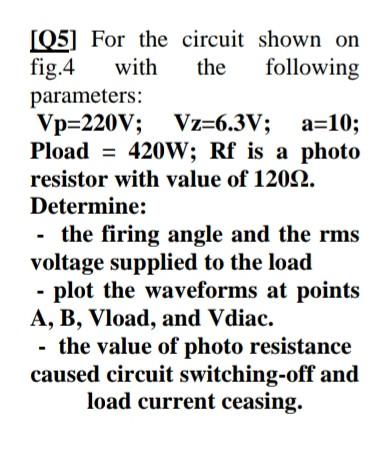

[Q5] For the circuit shown on fig.4 with the following parameters: Vp=220V; Vz=6.3V; a=10; Pload = 420W; Rf is a photo resistor with value of 12092. Determine: - the firing angle and the rms voltage supplied to the load - plot the waveforms at points A, B, Vload, and Vdiac. - the value of photo resistance caused circuit switching-off and load current ceasing.

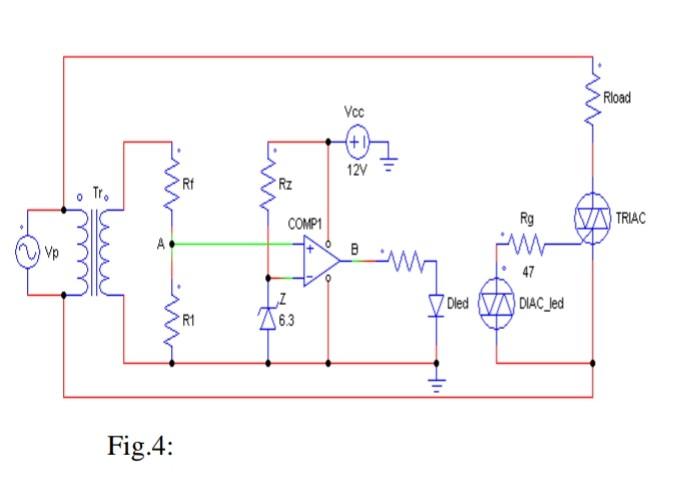

Rload VCC + 12V Rt Rz o TV COMP1 Rg TRIAC A 0 Vp B M 47 { Z 6.3 Dled DIAC_led R1 + 40 Fig.4:
