8. Determine the parameters of the equivalent circuit of a 3-phase induction motor from the following test results: No-l

[answerhappygod]

8 Determine The Parameters Of The Equivalent Circuit Of A 3 Phase Induction Motor From The Following Test Results No L 1 (24.46 KiB) Viewed 26 times

8 Determine The Parameters Of The Equivalent Circuit Of A 3 Phase Induction Motor From The Following Test Results No L 2 (21.94 KiB) Viewed 26 times

i HAVE MY EXAMS TOMORROW KINDLY HELP BY SOLVING THIS TWO
QUESTIONS WITH PROPER STEPS,

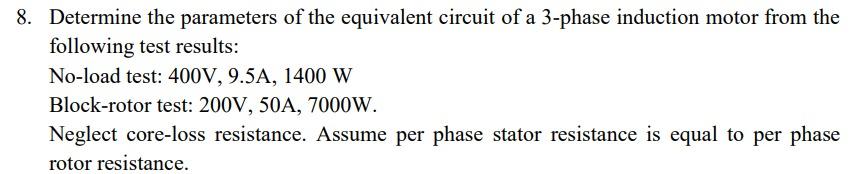

8. Determine the parameters of the equivalent circuit of a 3-phase induction motor from the following test results: No-load test: 400V, 9.5A, 1400 W Block-rotor test: 200V, 50A, 7000W. Neglect core-loss resistance. Assume per phase stator resistance is equal to per phase rotor resistance.

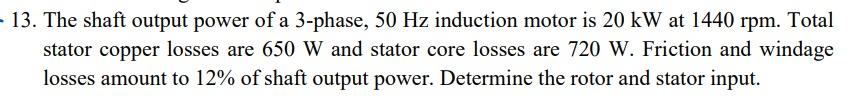

- 13. The shaft output power of a 3-phase, 50 Hz induction motor is 20 kW at 1440 rpm. Total stator copper losses are 650 W and stator core losses are 720 W. Friction and windage losses amount to 12% of shaft output power. Determine the rotor and stator input.
