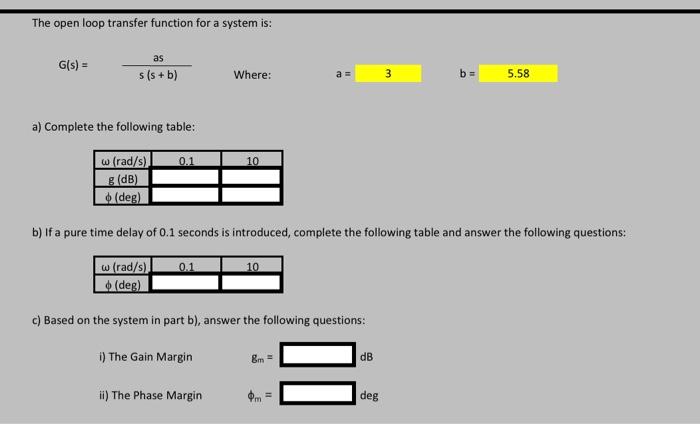

The open loop transfer function for a system is: G(s) = as s(s+b) Where: a = 3 b = 5.58 a) Complete the following table:
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The open loop transfer function for a system is: G(s) = as s(s+b) Where: a = 3 b = 5.58 a) Complete the following table:
The open loop transfer function for a system is: G(s) = as s(s+b) Where: a = 3 b = 5.58 a) Complete the following table: 0.1 10 w (rad/s) g(dB) 0 (deg) b) If a pure time delay of 0.1 seconds is introduced, complete the following table and answer the following questions: w(rad/s) 01 10 (deg) c) Based on the system in part b), answer the following questions: i) The Gain Margin &m dB ii) The Phase Margin Tm deg
