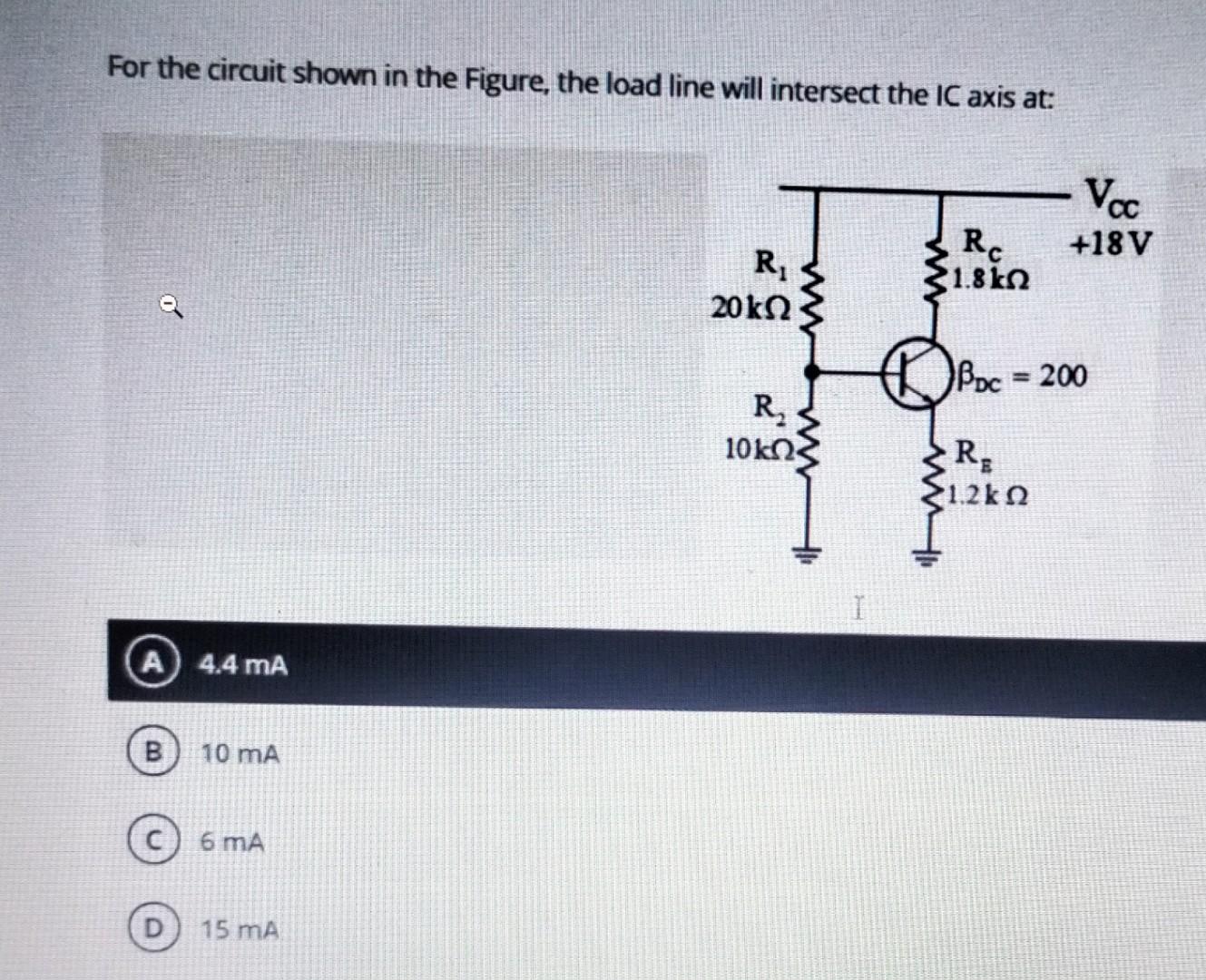

For the circuit shown in the Figure, the load line will intersect the IC axis at: Voc +18V R 20kΩ Rc 1.8k02 Boc = 200 R
