*D4.86 A source-follower amplifier with the configuration shown in Figure 4.31 is to be designed. The power supplies are

[answerhappygod]

D4 86 A Source Follower Amplifier With The Configuration Shown In Figure 4 31 Is To Be Designed The Power Supplies Are 1 (56.06 KiB) Viewed 34 times

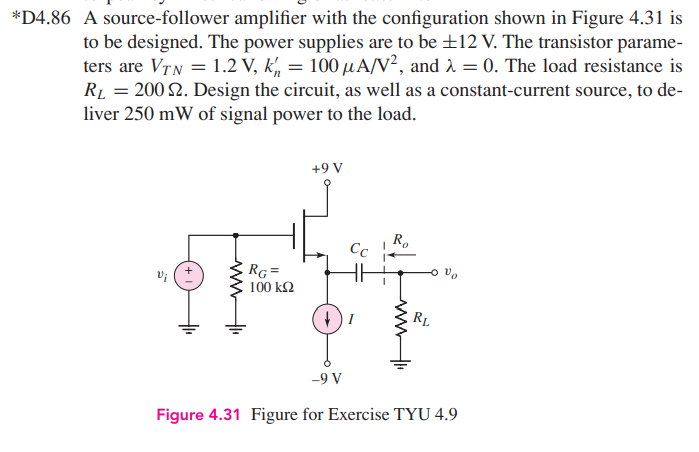

*D4.86 A source-follower amplifier with the configuration shown in Figure 4.31 is to be designed. The power supplies are to be +12 V. The transistor parame- ters are Vin = 1.2 V, kn = 100 u A/V2, and a = 0. The load resistance is R1 = 200S2. Design the circuit, as well as a constant-current source, to de- liver 250 mW of signal power to the load. +9 V CC R ": RG= 100 k 2 RL w -9 V Figure 4.31 Figure for Exercise TYU 4.9
