Voo - Ra Wu C Question 1 (30 pts): The transistor parameters are Vini 0.6 V, VTP2=-0.6 V, Kni=0.2 mA/V?, Kp2 = 1 mA/V?,

[answerhappygod]

Voo Ra Wu C Question 1 30 Pts The Transistor Parameters Are Vini 0 6 V Vtp2 0 6 V Kni 0 2 Ma V Kp2 1 Ma V 1 (86.11 KiB) Viewed 20 times

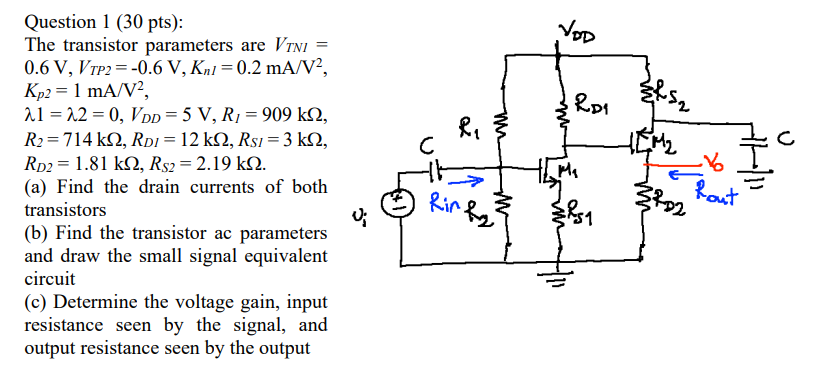

Voo - Ra Wu C Question 1 (30 pts): The transistor parameters are Vini 0.6 V, VTP2=-0.6 V, Kni=0.2 mA/V?, Kp2 = 1 mA/V?, 21 = 12 = 0, Vpp = 5 V, R1 = 909 k22, R2 = 714 k, Rdi = 12 k22, Rsi=3k92, Rp2 = 1.81 k12, Rs2 = 2.19 kN. (a) Find the drain currents of both transistors (b) Find the transistor ac parameters and draw the small signal equivalent circuit (c) Determine the voltage gain, input resistance seen by the signal, and output resistance seen by the output • Roi HEMA Me {es1 T% I Rout 3202 Rin} 당
