When the system shown in Figure 2 is subject to a unit step input, the system output responds as shown in Figure 3. Dete
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
When the system shown in Figure 2 is subject to a unit step input, the system output responds as shown in Figure 3. Dete

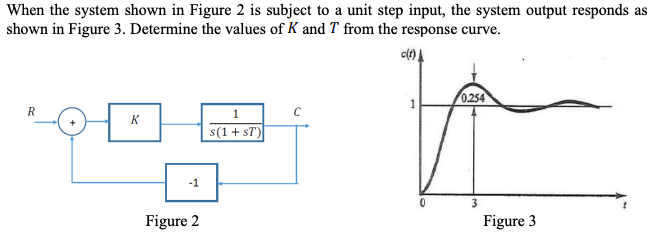

When the system shown in Figure 2 is subject to a unit step input, the system output responds as shown in Figure 3. Determine the values of K and T from the response curve. (!) 0.254 R 1 K S(1 + $T) - 1 0 Figure 2 Figure 3
