A single-input, single-output unity-feedback control system shown in Figure 1 has the plant transfer 2s2+s+1 function Gp

[answerhappygod]

A Single Input Single Output Unity Feedback Control System Shown In Figure 1 Has The Plant Transfer 2s2 S 1 Function Gp 1 (42.04 KiB) Viewed 21 times

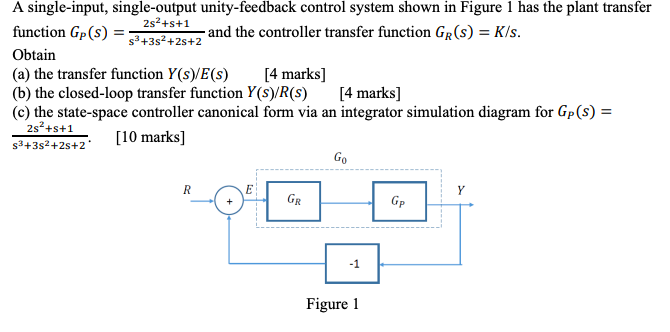

A single-input, single-output unity-feedback control system shown in Figure 1 has the plant transfer 2s2+s+1 function Gp(s) $2+352 +25+2 -and the controller transfer function Gr(s) = K/s. Obtain (a) the transfer function Y(S)/E(S) [4 marks] (b) the closed-loop transfer function Y(S)/R(S) [4 marks] (c) the state-space controller canonical form via an integrator simulation diagram for Gp(s) = 2s+s+1 $3+352 +28+2 [10 marks] Go R E + GR Gр -1 Figure 1
