Q9. What is the output of the following circuit? to 어 a) (xXORY) b) xXORY' c) x'XORY d) xXORY e) x'(y + x)y' Q10. Write
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Q9. What is the output of the following circuit? to 어 a) (xXORY) b) xXORY' c) x'XORY d) xXORY e) x'(y + x)y' Q10. Write

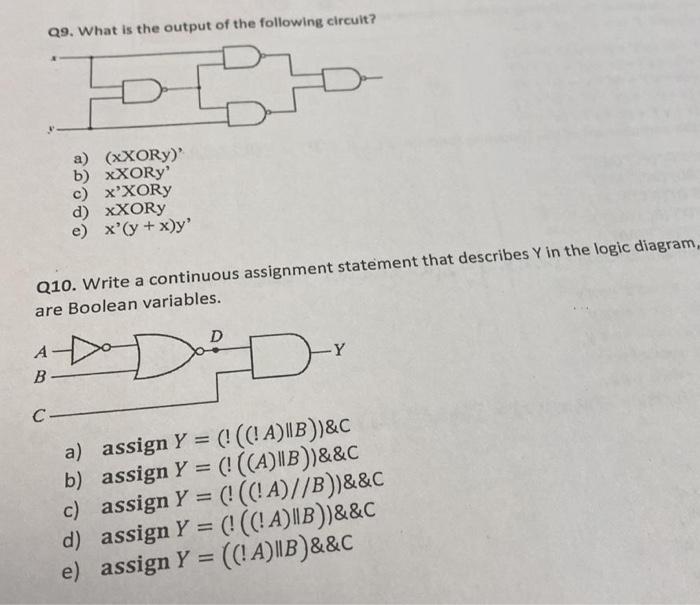

Q9. What is the output of the following circuit? to 어 a) (xXORY) b) xXORY' c) x'XORY d) xXORY e) x'(y + x)y' Q10. Write a continuous assignment statement that describes Y in the logic diagram are Boolean variables. D Y B C- a) assign Y = (((!A)|B))&C b) assign Y = (((A)||B))&&C c) assign Y = (!((!A)//B))&&C d) assign Y = (((!A)||B))&&C e) assign Y = ((!A)||B)&&C Y )
