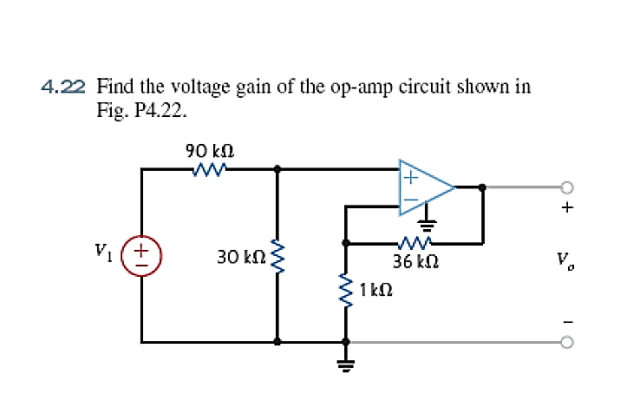

4.22 Find the voltage gain of the op-amp circuit shown in Fig. P4.22. 90 kΩ (+ 30 ΕΩΣ & V. ΛΜ 36 kΩ 1kΩ +
-
