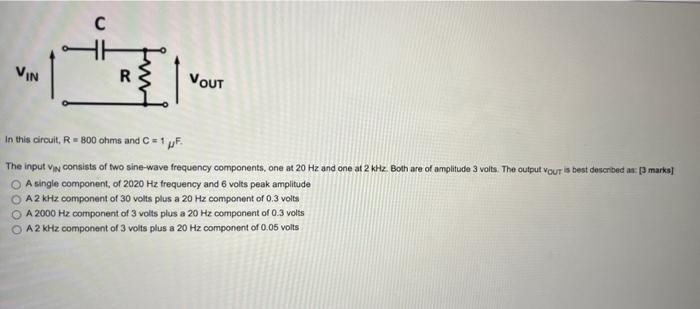

с VIN R VOUT In this circuit, R = 800 ohms and C=1MF. The input in consists of two sine-wave frequency components, one at 20 Hz and one at 2 kHz. Both are of amplitude 3 volts. The output out is best desorbed : 3 marks] A single component, of 2020 Hz frequency and 6 volts peak amplitude A2 kHz component of 30 volts plus a 20 Hz component of 0.3 volts A 2000 Hz component of 3 volts plus a 20 Hz component of 0.3 volts O A2 kHz component of 3 volts plus a 20 Hz component of 0.05 volts
