design a 4 bits Analog to Digital Converter (ADC) to convert
analog input from 0 to 9 V and use it in a fire alarm detection
system
The digital part for this circuit is already provided and you’ll
need to work only with analog feedback. We’ll use Multisim for
simulation, the digital portion will be provided for you to add the
analog one.

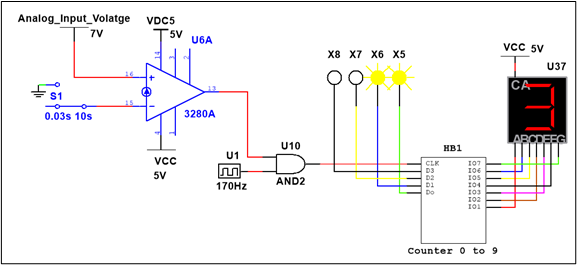

Design A 4 Bits Analog To Digital Converter Adc To Convert Analog Input From 0 To 9 V And Use It In A Fire Alarm Detec 1 (26.2 KiB) Viewed 27 times
Analog_Input_Volatge 7V VDC5 5V U6A X8 X7 X6 X5 * O O VCC 5V U37 CA si 0.03s 105 3280A U10 U1 HB1 CLK vcc 5V 170HZ AND2 107 TOE IOS 104 103 102 IOI Counter 0 to 9
