Q11 - Which of the followings does represent the Boolean Function X represented by its logic diagram (see figure)? А B -

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q11 - Which of the followings does represent the Boolean Function X represented by its logic diagram (see figure)? А B -

Post by answerhappygod »

1
1 (19.26 KiB) Viewed 20 times
I have to submit my homework within 15 mins Please can you solve it as soon as possible “
It is multiple Choice

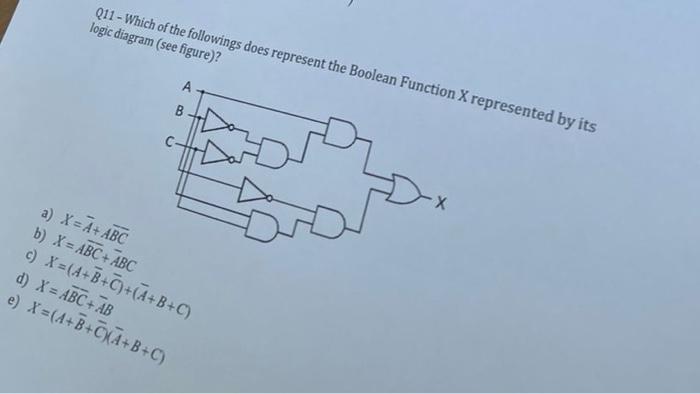

Q11 - Which of the followings does represent the Boolean Function X represented by its logic diagram (see figure)? А B -X a) X=Ā+ ABC b) X = ABC + ABC C) X =(A+B+7)+(A+B+C) d) X = ABC + AB e) X =(A+B+CXA+B+C)
