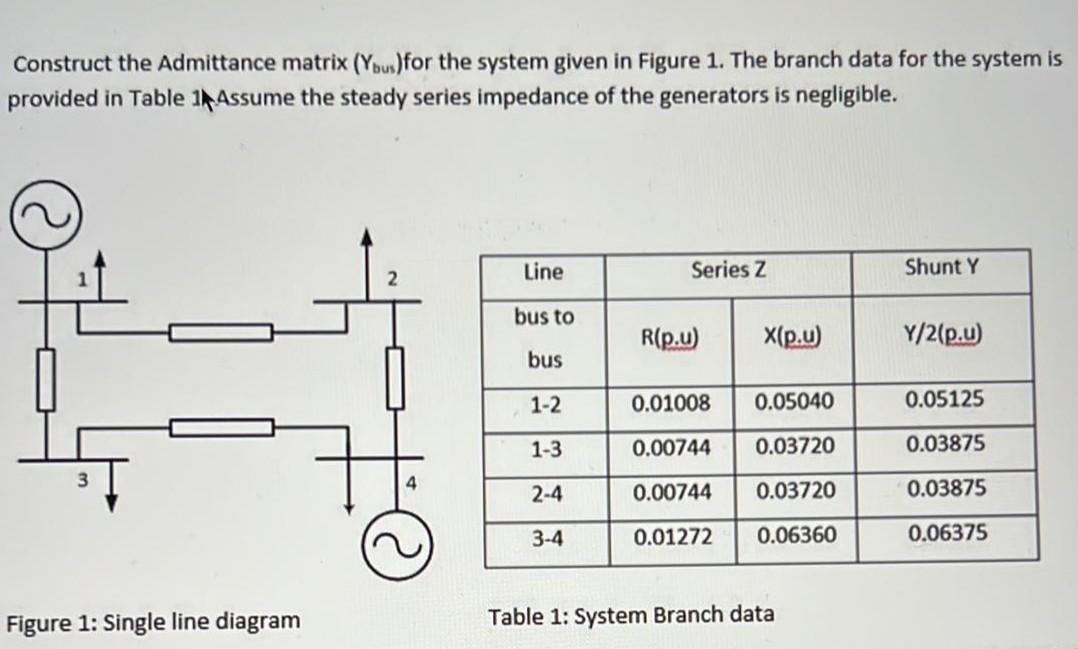

Construct The Admittance Matrix Bus For The System Given In Figure 1 The Branch Data For The System Is Provided In Tab 1 (64.04 KiB) Viewed 21 times
ASAP
Construct the Admittance matrix (bus)for the system given in Figure 1. The branch data for the system is provided in Table 1 assume the steady series impedance of the generators is negligible. Line Series Z Shunt Y bus to R(p.) X(p.) Y/2(p.) bus 1-2 0.01008 0.05040 0.05125 1-3 0.00744 0.03720 0.03875 2-4 0.00744 0.03720 0.03875 3-4 0.01272 0.06360 0.06375 Figure 1: Single line diagram Table 1: System Branch data
