The steady-state power angle characteristics of a salient-pole synchronous machine connected to an infinite bus system i

Post by answerhappygod »

The Steady State Power Angle Characteristics Of A Salient Pole Synchronous Machine Connected To An Infinite Bus System I 1
The Steady State Power Angle Characteristics Of A Salient Pole Synchronous Machine Connected To An Infinite Bus System I 1 (37.57 KiB) Viewed 33 times

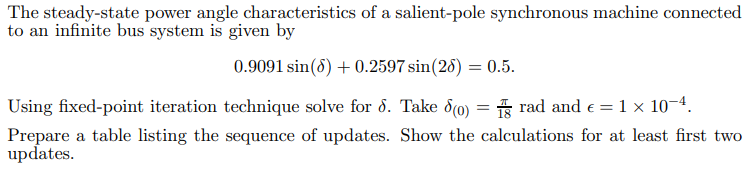

The steady-state power angle characteristics of a salient-pole synchronous machine connected to an infinite bus system is given by 0.9091 sin(8) + 0.2597 sin(20) = 0.5. Using fixed-point iteration technique solve for 8. Take 80) = l rad and e=1 x 10-4. Prepare a table listing the sequence of updates. Show the calculations for at least first two updates.
