1) Find waveforms for I and V for L,C
2) tranfer function u(D) for VL=0 and Ic=0
3) Determine the dispositives inside (1,2)
4) (optional) show the simulink simulation
1 Find Waveforms For I And V For L C 2 Tranfer Function U D For Vl 0 And Ic 0 3 Determine The Dispositives Inside 1 1 (45.09 KiB) Viewed 19 times
1 Find Waveforms For I And V For L C 2 Tranfer Function U D For Vl 0 And Ic 0 3 Determine The Dispositives Inside 1 2 (45.09 KiB) Viewed 19 times

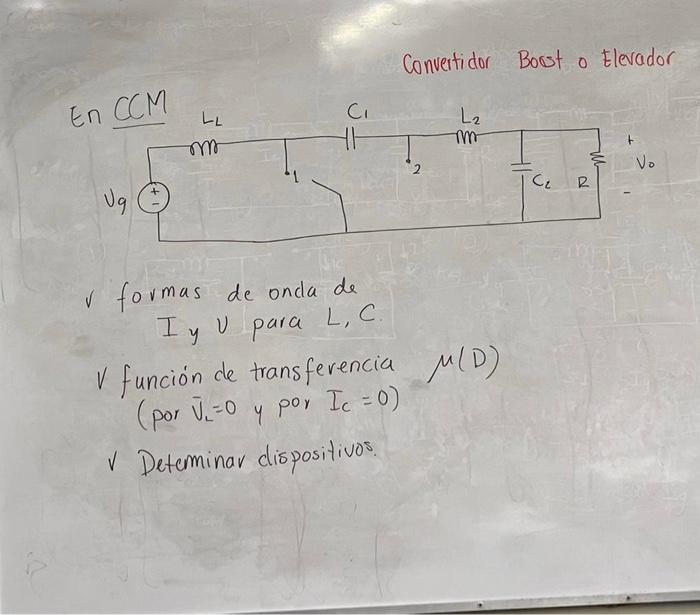

Convertidor Boost o Elevador En CCM LL Ci La m mo No С. R Ug C. v formas de onda de I y u para L,C. v V función de transferencia MLD) (por U, 0 y por Ic=0) ✓ Determinar dispositivos J=
