(a) A control system for controlling the pressure in a closed chamber and the block diagram model without feedback path

[answerhappygod]

A A Control System For Controlling The Pressure In A Closed Chamber And The Block Diagram Model Without Feedback Path 1 (32.5 KiB) Viewed 23 times

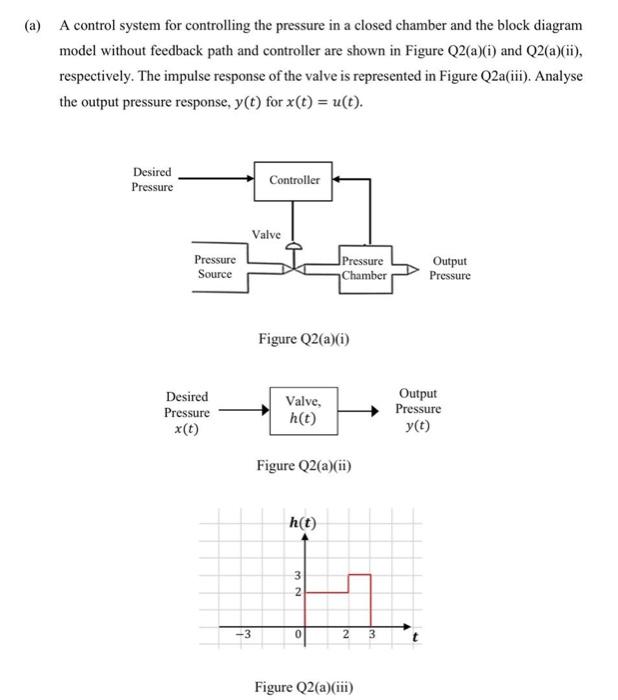

(a) A control system for controlling the pressure in a closed chamber and the block diagram model without feedback path and controller are shown in Figure Q2(a)(i) and Q2(a)(ii), respectively. The impulse response of the valve is represented in Figure Q2a(iii). Analyse the output pressure response, y(t) for x(t) = u(t). Desired Pressure Controller Valve Pressure Source Pressure Chamber Output Pressure Figure Q2(a)(i) Valve, Desired Pressure x(t) h(t) Output Pressure y(t) Figure Q2(a)(ii) ht) 3 2 MN -3 0 2 3 Figure Q2(a)(iii)
